    M1 NM rear sight

    Looking for some helping in clearing up when the NM rear sight first came about. I have a NM marked rear sight base with LUX pinion, "W" marked windage knob,NM 520 rear aperture. Also rolling around in parts box have BME & LPR marked windage knobs both marked NM. No pic's still sorting out how to post can email if that would help.
    Pfc out

    #2
    Those are some nice parts, Gary!
    Feel free to email me the photos and I can post them later when I get home from work if you'd like.
    Cheers,
    --Brian
    Welcome to the Addiction!

    Comment


      #3

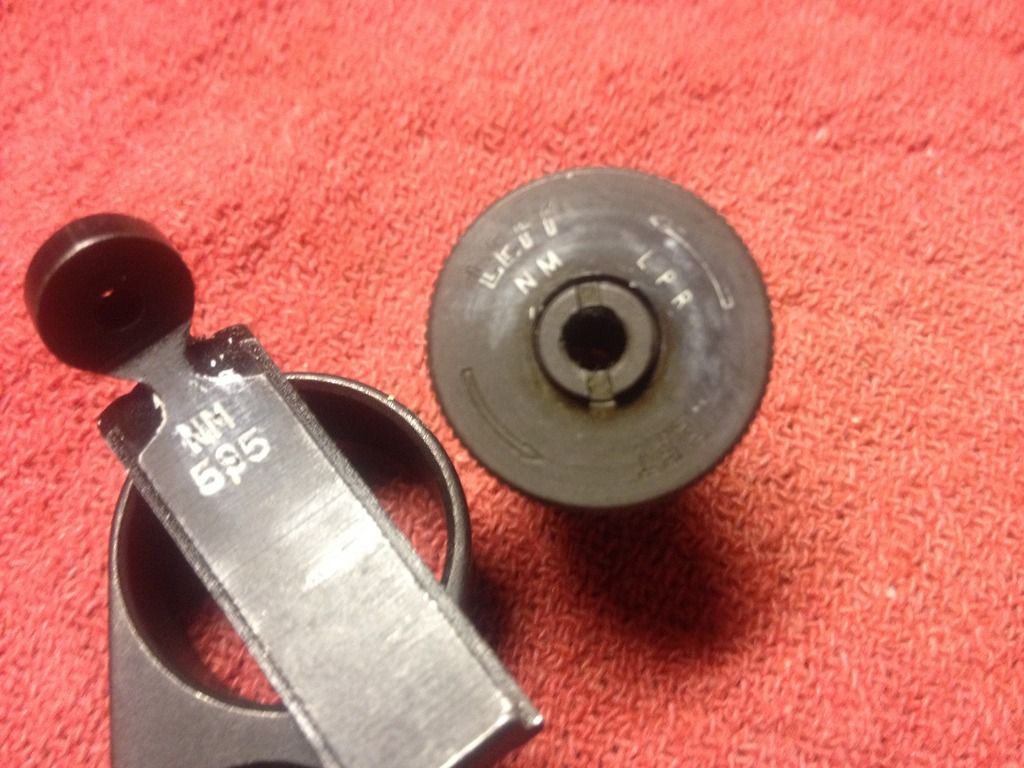

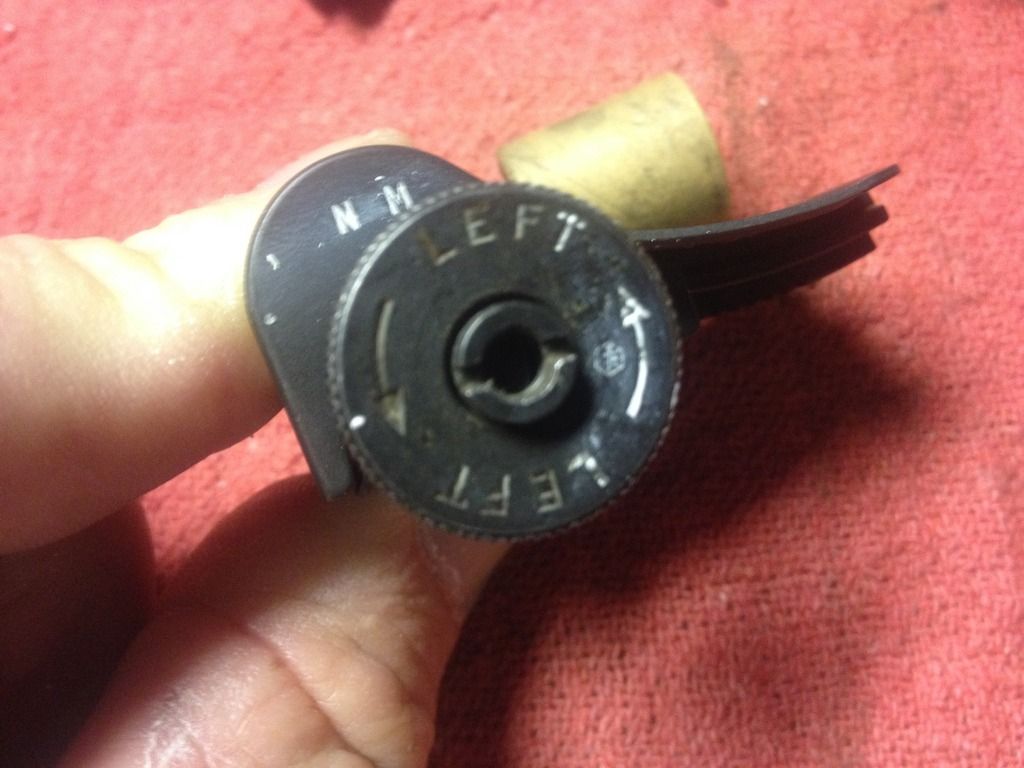

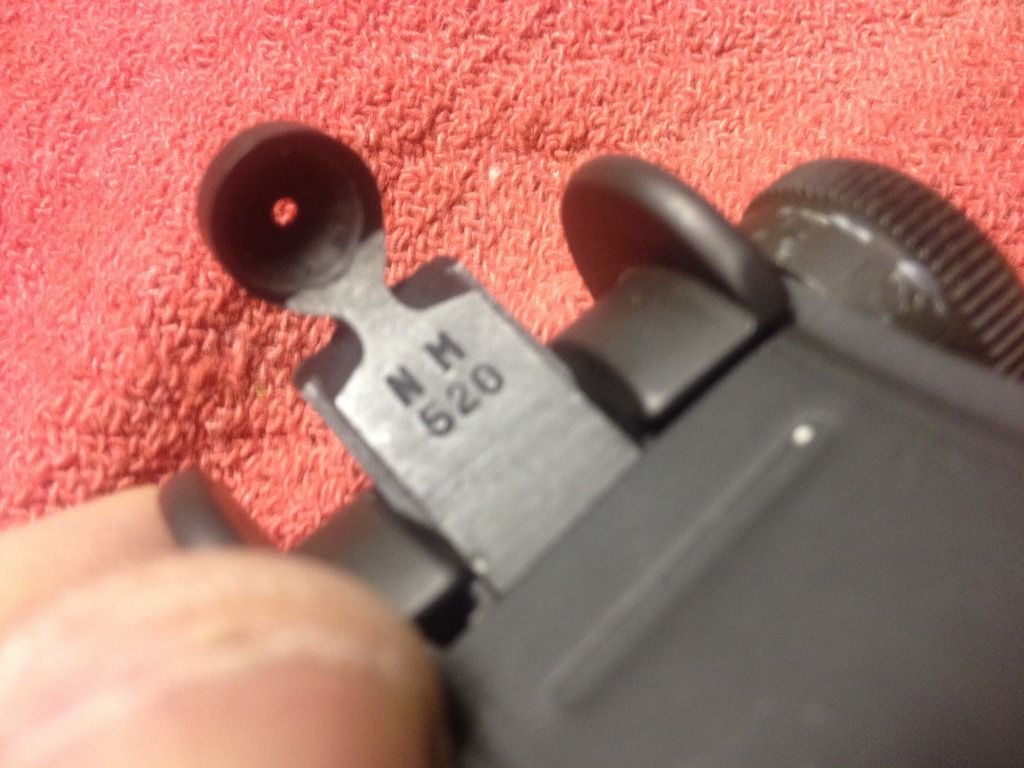

      Photos of the parts Gary speaks of. Thanks Gary for allowing them to be posted here!!







      Welcome to the Addiction!

      Comment


        #4
        Brian thanks for posting.

        Comment


          #5
          The NM .062 front sight came along first in 1957, 1958 the rear non-hooded apertures .520/.595, 1959 along came the NM marked base and windage knob, the 1/2MOA elevation disk didn't came out until 1960 it was non-issued but authorized. The NM/2A didn't arrive until 1962.

          Comment


            #6
            Phil,
            Thanks for the info. There is a guy I get parts from who got some from a 2112 who has passed. I believe he has a dozen of the rear sight disc in his parts box. Will have to check had some in the pass and sold them off. I believe Brian aka JD picked up a couple.
            Pfc out

            Comment


              #7
              Yes, Sir.....I have a few of those discs for sure!! Thanks to you, of course!!! cp1
              Welcome to the Addiction!

              Comment


                #8
                Just too be clear, it was authorized but non-issued and over the years I'm sure there have been many makers some good and some not so good. I have one that was given too me from a former Air Force shooter I know its not a commercial pick up but it isn't machined very well either. the best I can say is that it is flat with serrations .

                Comment


                  #9
                  Phil,
                  The disc that I have had came off Camp Pendleton from a retired 2112. I sent a couple over to Nez aka Bamban and he put them on a couple of his match rifles. He said they were very nice and did a Thread I believed on M14 Forum. You might want to contact him. I will check to see if I one left and see if Brian will post a pic of it.

                  Comment


                    #10
                    Originally posted by Pfc Thomas View Post
                    Phil,
                    The disc that I have had came off Camp Pendleton from a retired 2112. I sent a couple over to Nez aka Bamban and he put them on a couple of his match rifles. He said they were very nice and did a Thread I believed on M14 Forum. You might want to contact him. I will check to see if I one left and see if Brian will post a pic of it.
                    I don't doubt you at all, Nez and I are good friends. The one I have came from some unknown Gov't vender and clearly mine isn't very well done. The serrations on my disk are almost twisted like a sea shells spiral, odd and neat at the same time. One side is MOA and the second is 1/2 MOA. It also has a purpleish cast-hue, obviously when it was finished the tanks were too hot, the part was made from a very hard alloy or the part was too small and over heated in the tank, flip a coin. I've kept mine for two reasons it was a gift and the unique novelty, if I had paid money for it I would have sent it back. ​

                    Comment


                      #11
                      Click image for larger version

Name:	IMG_0969.JPG
Views:	433
Size:	77.8 KB
ID:	6110 here are a couple pics of the disc that Gary got. One side is 1/2 moa, the other is 1 moa. Looks fairly nice, but I have nothing to compare to as these are the only ones I have ever seen in person. Sorry for the picture quality, I am not a photographer in the least. Hope these are what you want Gary.

                      Comment


                        #12
                        Click image for larger version

Name:	IMG_0970.JPG
Views:	427
Size:	76.9 KB
ID:	6112 photo number 2

                        Comment


                          #13
                          photo number 3 Click image for larger version

Name:	IMG_0971.JPG
Views:	418
Size:	101.0 KB
ID:	6114

                          Comment


                            #14
                            photo number 4.

                            I would be glad to take more pics or a few measurments if you want. Click image for larger version

Name:	IMG_0972.JPG
Views:	440
Size:	91.3 KB
ID:	6116

                            Comment


                              #15
                              Shaun,
                              Thanks for posting. Your missing the M1 thumb though. You will have to work on that.
