Making the M1 at Springfield Armory

[IRON WORKER]

Here is the link to my thread on the M14 Forum,

http://m14forum.com/steel-wood/196076-m1-s-sa.html

[Bulletguide]

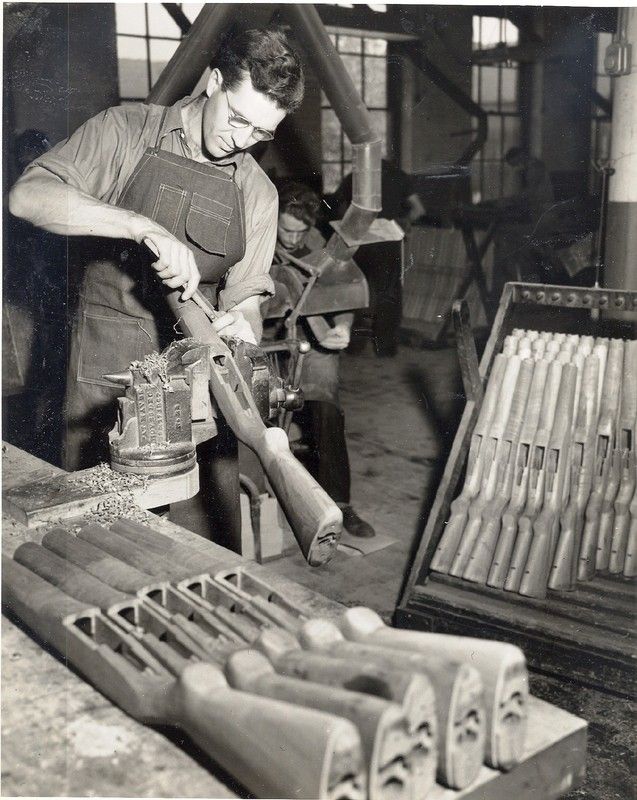

Great photos, thanks for the link. Takes some time to take it all in. I really like the guy using a rasp to finish down the M1 stocks. I wondered how much was done by hand...
Very cool.

[IRON WORKER]

[IRON WORKER]

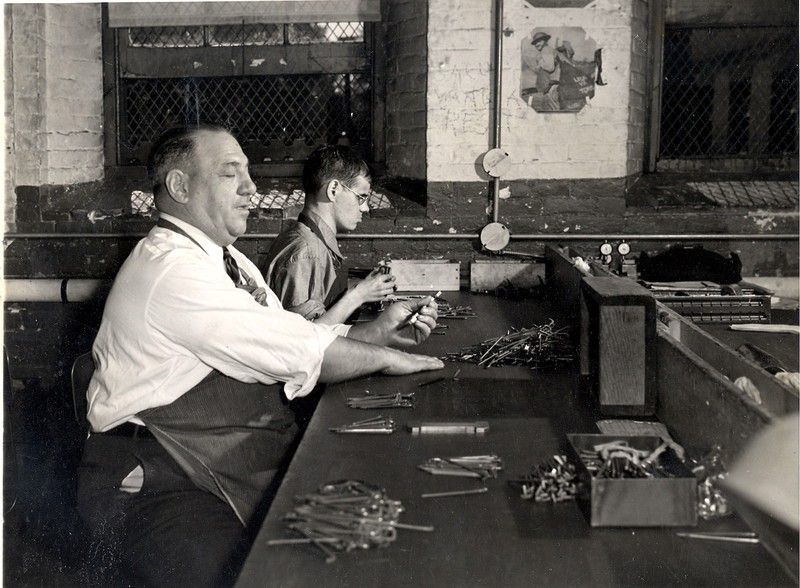

Blind men gaging firing pins


Boring gas cylinders

[IRON WORKER]

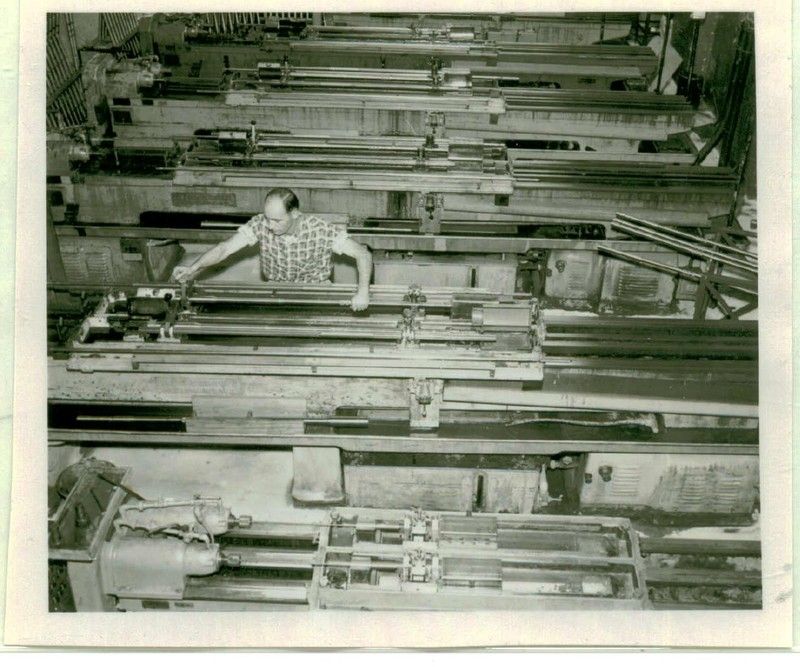

rifling machines

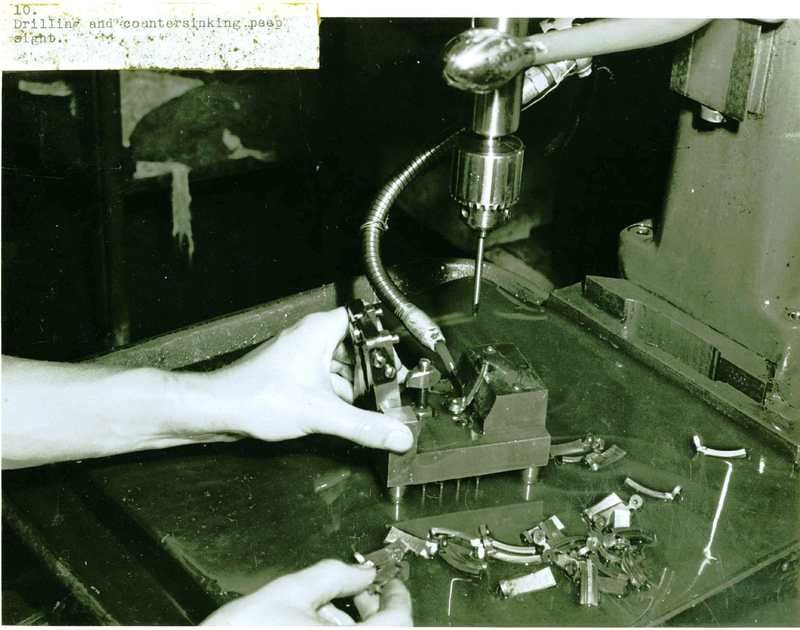

drilling aperatures

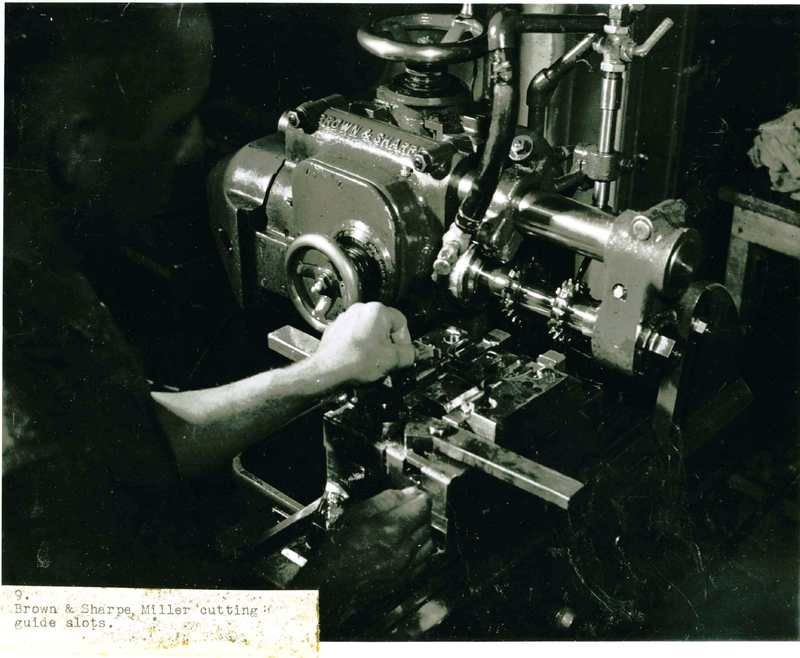

straddle milling aperatures


broaching aperatures

[IRON WORKER]

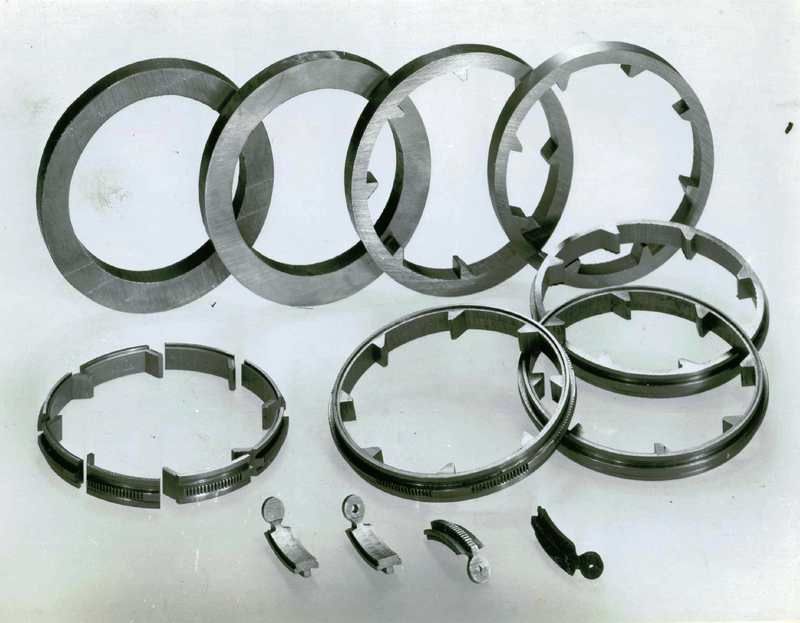

aperature steps

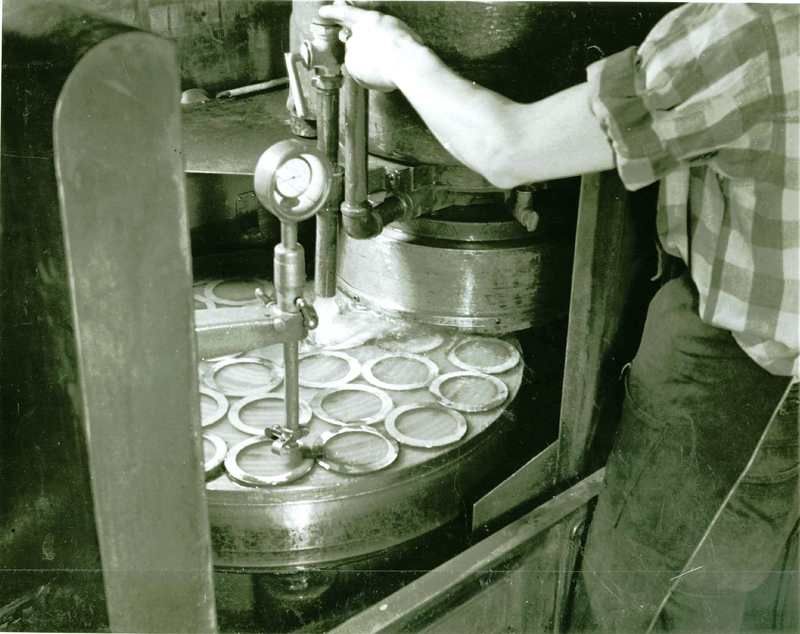

Blanchard grinding aperatures discs

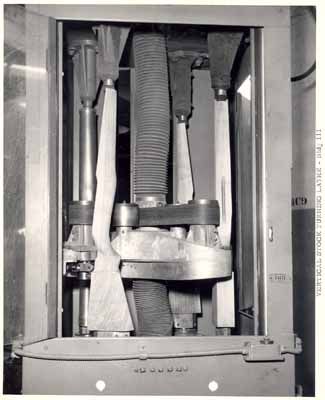

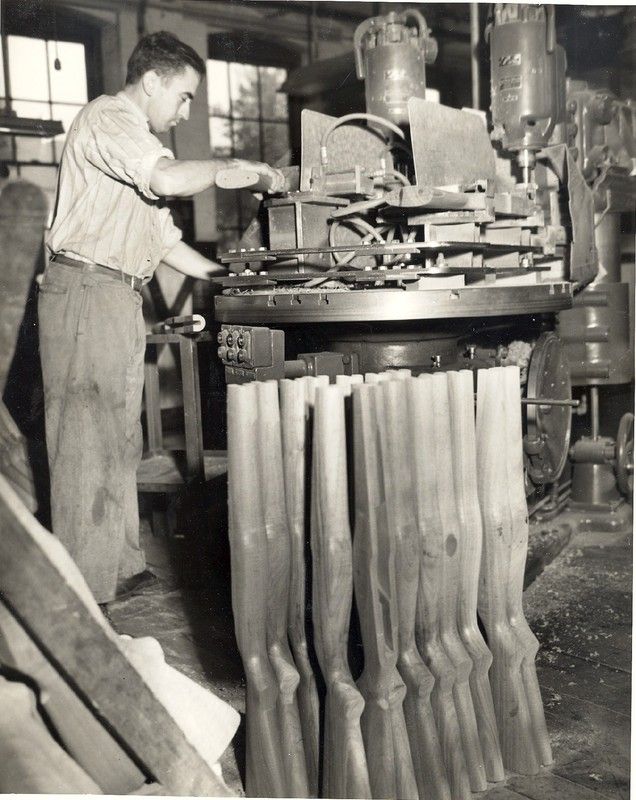

stock contouring


-75 cold room test facility

[IRON WORKER]

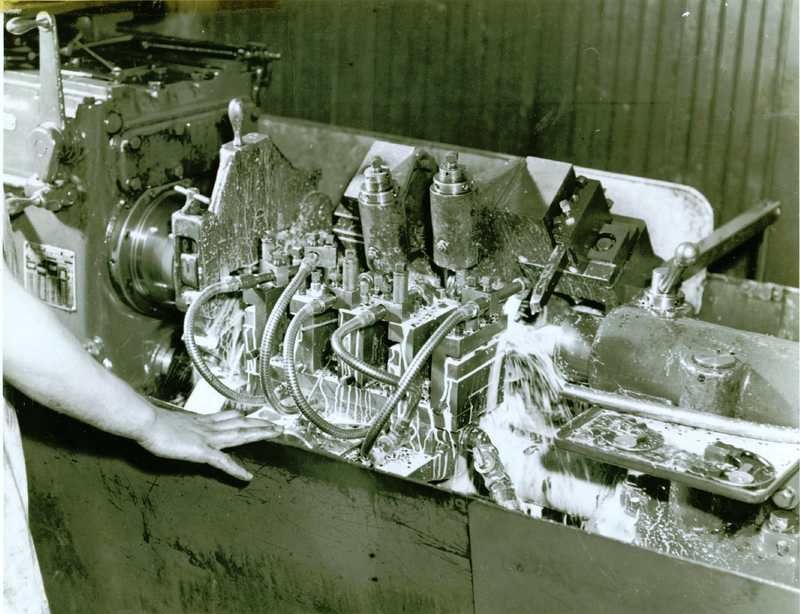

Barrel contouring FAYE automatic lathe

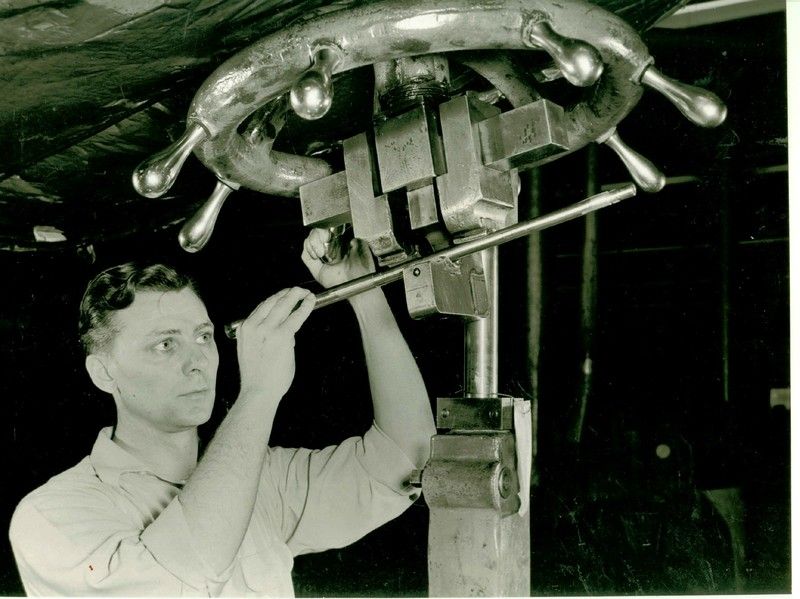

barrel straightening

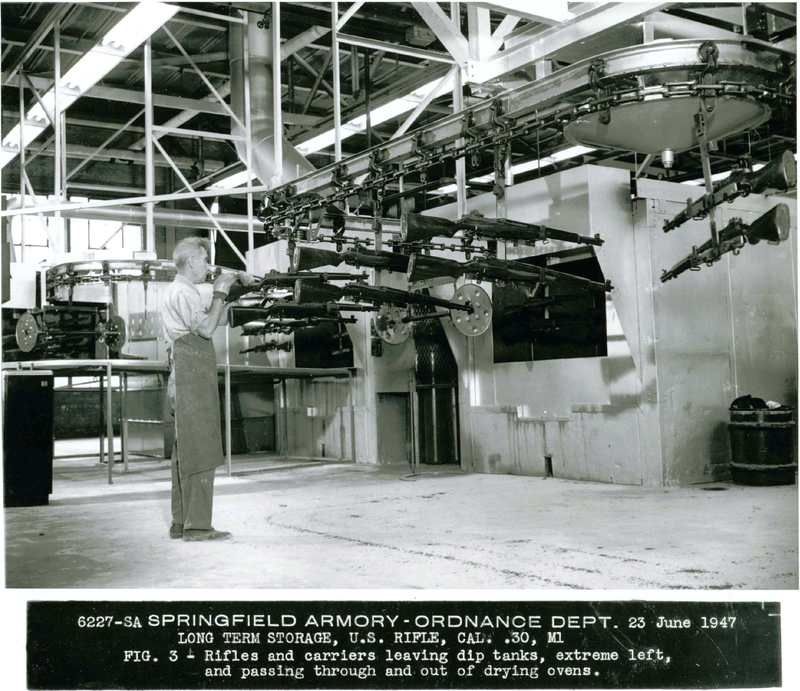

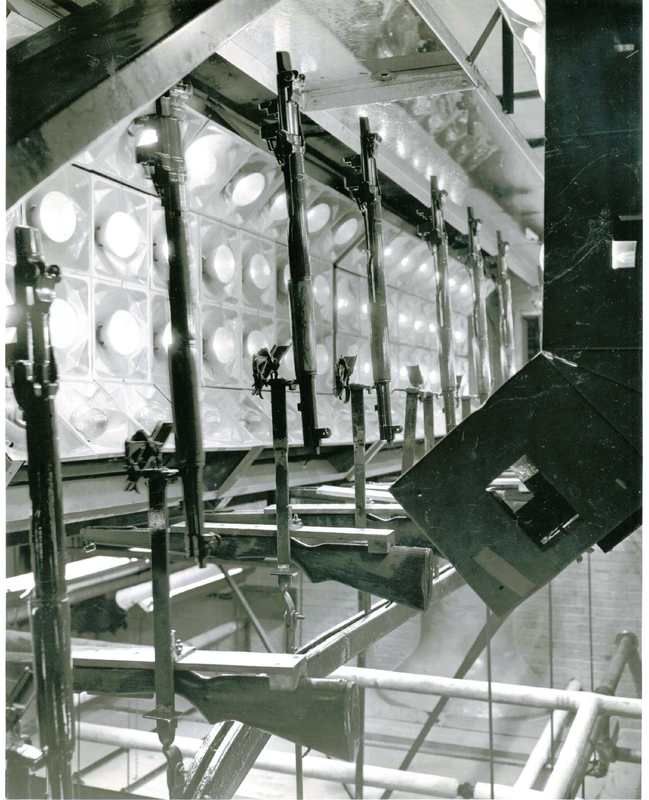

preservative drying line

[IRON WORKER]

chambering

[IRON WORKER]

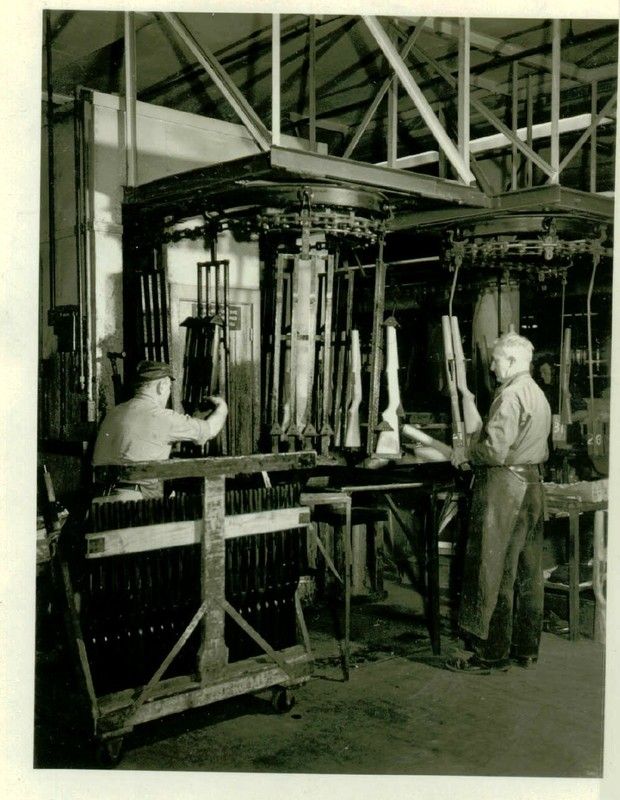

oiling stocks


Aunt Bee checking trigger housing forgings

[IRON WORKER]

JC Garand holding last M1 Produced


more later

[Jersey Devil]

Really great, Ironworker......thank you kindly for taking the time to post them here for our members!!

[CCyooper]

Yes, I second that ... outstanding contribution to the forum.

[IRON WORKER]

More pics
