    M1 SA Single Bevel Follower Arm

    Does anyone have pics of AN SA unmarked single bevel follower Arm?

    I am looking for one for my SA 200442 but am unsure where to find one and what exactly they l99k like and how they differ from WRA single bevel.

    Thank you!

    Scott

    #2

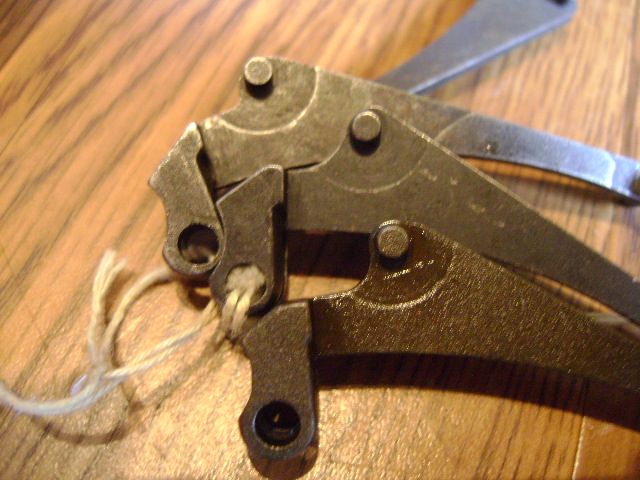

    The SA single bevel follower arm was out of the system by the mid 40K serial range. What you need is the flat face follower arm for your 200442 rifle.

    My photo shows one on the right side, Orlando has better photos as there was a double face than flat face from mid 1940 into early 1941 Click image for larger version

Name:	p1010027_0023.jpg
Views:	246
Size:	136.5 KB
ID:	20562

    Comment


      #3
      Thank you!

      I.am guessing these are very hard to find?

      Thank you!

      Scott

      Comment


        #4

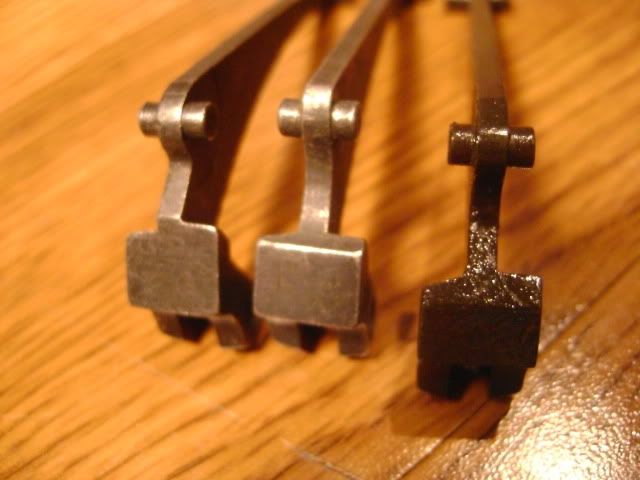

        from the lefy, flat faced, double face/bevel, late follower. Flat faced aren't that hard to find, double bevels you don't see that often


        Last edited by Orlando; 07-14-2019, 07:35 PM.

        Comment


          #5
          Photo of SA 216130 with S_A 1-41 bbl Click image for larger version

Name:	2pql2z4.jpg
Views:	214
Size:	222.2 KB
ID:	20623

          Comment


            #6
            photo of serial number, original flush nut and short pinion Click image for larger version

Name:	2lnwmmf.jpg
Views:	182
Size:	157.2 KB
ID:	20657

            Comment


              #7
              photo of SA GHS cartouche Click image for larger version

Name:	2s6jzmc.jpg
Views:	173
Size:	179.5 KB
ID:	20659

              Comment


                #8
                Very nice!

                Scott
